KPL-18

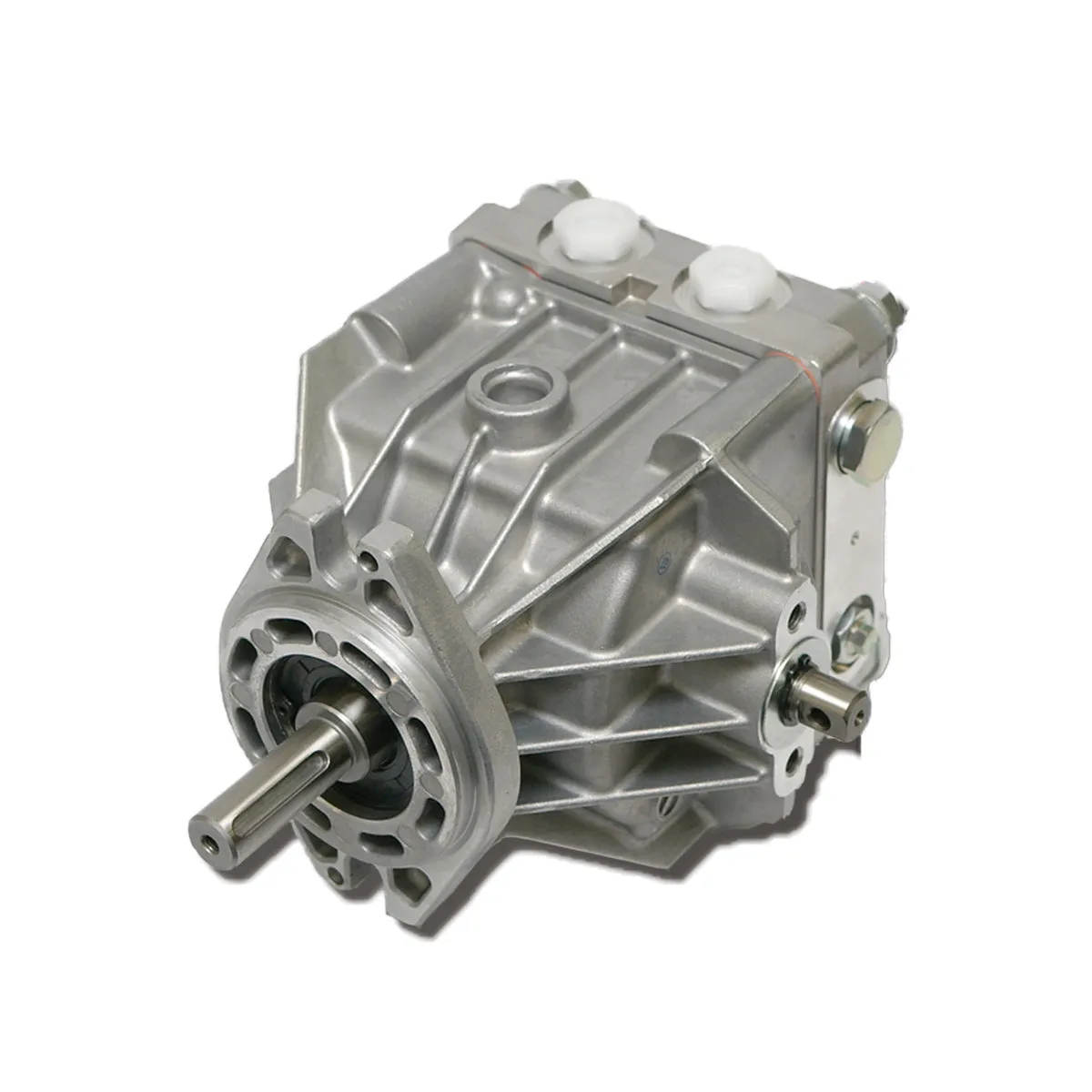

Note: Your unit may look different. The picture is a stock photo of the KPL-18 Series Pump.
Manufacturer ID: KPL-18
This is the KPL-18 pump. It is an excellent choice for applications that require a 18 cc hydraulic pump.
Features
Specifications
|
Specification |
Value |
Units |
|
Piston Type |
Shoeless |
|
|
Displacement |
18 |
cc/rev |
|
Input Speed |
Max.: 3,600 |
rpm |
|
Weight (dry) |
6.8 (15) |
kg (lb) |
|
Charge Pump |
3 |
cc/rev |
|
Pressure |
Continuous: 9.8 (100) |
MPa (bar) |
|
Input Rotation |
Optional (Clockwise or Counter-Clockwise) |
|
|
Orifice |
Forward (Optional): 0.8 (0.03) |
mm (in) |
|
Control Shaft Location |
Optional (Right or Left) |
|
|
Input Shaft Shape |
Optional (Spline, Key or Tang) |
|
|
Loop Relief Valve |
N/A |
MPa (bar) |
|
Neutral Device (Return to Neutral) |
Optional |
|
|
Port Size |
Main Port: 3/4-16UNF-2B O-ring Boss |
|
|
Mounting |
SAE ""A"" |
|
|
Bypass Valve |
Standard |
|
|
Auxiliary/External Hydraulics |
Optional (Type 1 or Type 2) |
|
|
Type 1: Charge Pump with external hydraulics |
4 |
cc/rev |
|
Type 2: Gear Pump (installed on charge pump) |
1-5 |
cc/rev |
|
External Hydraulics Port Size |
Discharge: 9/16-18UNF-2B O-ring Boss |
